Lua Scripting

Introduction

FOME extends and customizes firmware functionality and behavior through an embedded Lua interpreter. Sensors, signals, and engine controller state are exposed for reading and manipulation, allowing the user to tailor a control strategy to fit a specific application's needs.

This page documents the most up-to-date version of FOME's Lua scripting support: not all interfaces are supported in earlier versions.

Overview

FOME exposes a Lua interface comprising a number of functions and types for inspecting and manipulating firmware state and configuration. At a high level, the interface is organized into these categories:

• A small utility library, including timers, PIDs, and user-defined lookups; see the Utilities reference.
• General input and output; see the Input and Output reference.
• Sensor reading and Lua-controlled sensors; see the Sensors reference.
• Engine controller state, calibration, and per-cycle adjustments; see the Firmware State and Control reference.
• CAN bus communication; see the CAN Bus reference.
• Subsystem-specific hooks for Launch Control, Boost Control, Crankshaft Position Input, and Vehicle Speed.

For examples, see the files in FOME's lua/examples/ directory.

For a basic introduction to the Lua language itself, see the Lua reference manual.

Conventions

• The Lua interpreter will trigger an error if there is a mistake in the program: check the FOME Console to see errors and script output.
• Index conventions vary by function. Most index parameters (e.g. PWM channels, aux analog/digital, digital I/O) are 0-based, but tables, curves, Lua gauges, persistent values, and CAN bus channels are 1-based, matching their numbering in TunerStudio. Each function's documentation calls out the correct range.

Writing Your Script

The entire Lua script is read and validated at startup, then a global script function named onTick is invoked periodically by the firmware.

Here is a simple script to illustrate this behavior:

print('Hello FOME via Lua!')

function onTick()
    print('FOME called onTick()')
end

User-Defined Lookup Tables and Curves

FOME provides for user-defined lookup tables and curves for use with Lua scripting. These tables and curves are set in the FOME configuration (via TunerStudio) and lookups are interpolated along their definition.

The tables and curves have user-definable names up to sixteen characters long. Their names and definitions are configurable in the Advanced > Lua Calibrations menu in TunerStudio.

3D Tables

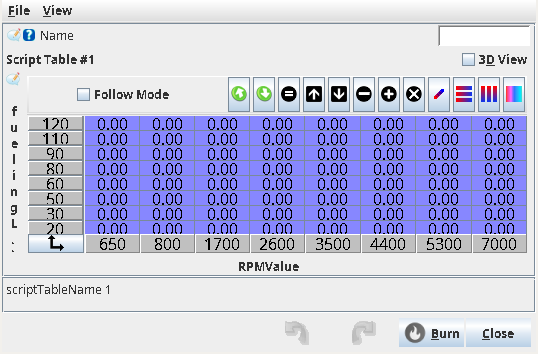

FOME provides four user-definable three-dimensional tables for use with Lua scripting. The first table affords the most precision, defined by single-precision floating-point values, while the remaining three tables are defined by 8-bit integers; all tables are eight by eight in dimension, defined by 16-bit integer coordinates.

Two functions are provided to interact with the user-defined tables:

• findTableIndex(name)
• table3d(index, x, y)

2D Curves

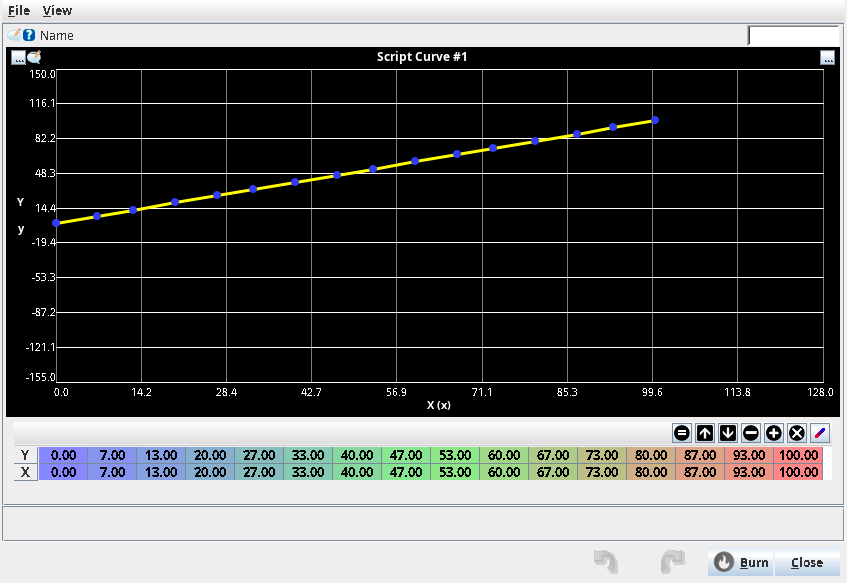

FOME provides six user-definable two-dimensional curves for use with Lua scripting. The first two curves afford the most accuracy, defined by sixteen single-precision floating-point coordinates, while the remaining four curves are defined by eight single-precision floating-point coordinates.

Two functions are provided to interact with the user-defined curves:

• findCurveIndex(name)
• curve(index, x)

User-Defined Settings

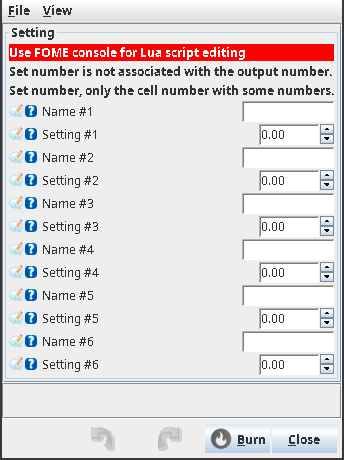

FOME provides eight user-definable single-precision floating-point settings for use with Lua scripting.

One function is provided to interact with the user-defined settings:

• findSetting(name, defaultValue)

Persistent Values

FOME provides 64 numeric persistent values for use with Lua scripting. Persistent values are stored in MCU backup SRAM, which is preserved across ignition/power cycles for as long as the ECU has any source of power (including the backup battery on supported boards). They are useful for retaining state between runs, e.g. trip counters or learned values.

Persistent values require backup SRAM hardware support; calling these functions on a board without backup SRAM raises a Lua error.

• getPersistentValue(index)
• storePersistentValue(index, value)

Lua Interface Reference

Utilities

info

These functions are included in all builds of FOME unless otherwise noted.

mcu_standby()

warning

mcu_standby is only available in FOME builds targeting STM32 F4 and STM32 F7 MCUs.

Causes the firmware to place the MCU into a low current consumption standby mode.

no parameters

print(message)

Print a line of text to the ECU's log.

parameter	type	description
message	string	The message to print. Pass a string (or number) and it will be printed to the log.

setTickRate(frequency)

Set the frequency at which the firmware passes context to the Lua script. Primarily, this controls how often FOME calls the script's onTick function. Additionally, this affects how often other functions and callbacks of the script, like onCanRx, are invoked.

The default rate set at startup is 10 times per second (10 Hz).

parameter	type	description
frequency	float	The tick rate to set, in hertz. Values are clamped to be not less than 1 hertz and not more than 200 hertz.

crc8_j1850(data, length)

Computes the OBD-II (SAE J1850) CRC-8 cyclic redundancy check across the leading bytes of the supplied data table. At most eight bytes of input are read; the CRC is computed over the lesser of the table length and length.

parameter	type	description
data	integer table	Up to 8 bytes of input data, in a Lua table indexed from 1.
length	integer	Maximum number of bytes from data to include in the CRC computation.

interpolate(x1, y1, x2, y2, x)

Linearly interpolate a value x along the line defined by two points (x1, y1) and (x2, y2).

parameter	type	description
x1	float	The x-axis value of the first point of the line.
y1	float	The y-axis value of the first point of the line.
x2	float	The x-axis value of the second point of the line.
y2	float	The y-axis value of the second point of the line.
x	float	The x-axis value of the point to interpolate along the line defined by (x1, y1) and (x2, y2).

findTableIndex(name)

Returns the 1-based index of the named user-defined table, suitable for passing to table3d. Returns nil if no table with that name exists.

parameter	type	description
name	string	The name of the user-defined table to look up.

table3d(index, x, y)

Lookup a linearly interpolated value from the specified user-defined Lua script table. Tables are identified by their 1-based index: 1, 2, 3, 4.

parameter	type	description
index	integer	The index of the user-defined table to lookup into; 1 through 4.
x	float	The x-axis value to lookup in the specified table.
y	float	The y-axis value to lookup in the specified table.

findCurveIndex(name)

Returns the 1-based index of the named user-defined curve, suitable for passing to curve. Returns nil if no curve with that name exists.

parameter	type	description
name	string	The name of the user-defined curve to look up.

curve(index, x)

Lookup a linearly interpolated value from the specified user-defined Lua script curve. Curves are identified by their 1-based index: 1, 2, 3, 4, 5, 6.

parameter	type	description
index	integer	The index of the user-defined curve to lookup into; 1 through 6.
x	float	The x-axis value to lookup in the specified curve.

findSetting(name, defaultValue)

Retrieve the value of the user-defined Lua setting identified by its name, or the supplied value if the setting does not exist.

This is most useful when the script developer and consumer are different people, and also when editing the Lua script in TunerStudio.

parameter	type	description
name	string	The name of the user-defined setting to retrieve the value of.
defaultValue	float	The value to use if specified user-defined setting does not exist.

getPersistentValue(index)

Returns the persisted value currently stored for the given index. Persistent values are identified by their 1-based index: 1, 2, 3, ..., 64.

parameter	type	description
index	integer	The index of the persistent value to retrieve; 1 through 64.

storePersistentValue(index, value)

Stores the given value to the persistent index specified. Persistent values are identified by their 1-based index: 1, 2, 3, ..., 64.

parameter	type	description
index	integer	The index of the persistent value to store; 1 through 64.
value	number	The persistent value to set the specified index to.

Timer

Timer is a Lua type that keeps track of elapsed seconds. The timer does not initialize to a reset state; instead it initializes to a "foreverish" value.

timer = Timer.new()

Timer.new()

no parameters

Timer.getElapsedSeconds()

Returns the number of seconds since the timer was last reset.

no parameters

Timer.reset()

Resets the timer to begin counting from zero.

no parameters

Pid

Pid is a Lua type that implements a PID (proportional-integral-derivative) controller.

$u(t) = K_\text{p} e(t) + K_\text{i} \int_0^t e(\tau) \,\mathrm{d}\tau + K_\text{d} \frac{\mathrm{d}e(t)}{\mathrm{d}t}$

The implementation automatically tracks the time delta between Pid.get invocations.

pid = Pid.new(1.5, 0.2, 0.1, -80, 80)

Pid.new(kp, ki, kd, min, max)

parameter	type	description
kp	float	$K_\text{p}$, the proportional factor of the PID control.
ki	float	$K_\text{i}$, the integral factor of the PID control.
kd	float	$K_\text{d}$, the derivative factor of the PID control.
min	float	The minimum output value of the PID control; output is limited above this value.
max	float	The maximum output value of the PID control; output is limited below this value.

Pid.get(target, input)

Retrieves the PID controller's output given the target setpoint and the output of the process or system the PID is controlling.

parameter	type	description
target	float	The target setpoint of the PID controller.
input	float	The output of the process or system that is feedback to the PID controller.

Pid.setOffset(offset)

Sets the amount to statically bias the PID controller output by.

parameter	type	description
offset	float	The amount to add to the computed PID controller output.

Pid.reset()

Resets the PID controller.

no parameters

Input and Output

getAuxAnalog(index)

Returns the value of an auxiliary analog input sensor (i.e. Lua Analog Aux Inputs: ADC #1 ... #8) by its index. Inputs are identified by their 0-based index: ADC #1 has index 0.

parameter	type	description
index	integer	The index of the auxiliary analog (ADC) sensor; 0 through 7.

getAuxDigital(index)

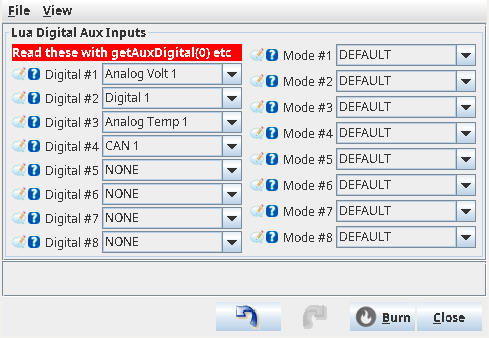

Returns the value of an auxiliary digital input sensor (i.e. Lua Digital Aux Inputs: Digital #1 ... #8) by its index. Inputs are identified by their 0-based index: Digital #1 has index 0.

parameter	type	description
index	integer	The index of the auxiliary digital sensor; 0 through 7.

getDigital(index)

Returns the current value of a digital I/O channel of the specified index. Channels are indexed as follows (from lua_hooks.cpp):

index	description
0	Clutch Down Switch
1	Clutch Up Switch
2	Brake Pedal Switch
3	A/C Switch
4	A/C Pressure Switch

parameter	type	description
index	integer	The index of the digital channel to return; 0 through 4; see lua_hooks.cpp.

readPin(name)

Returns the physical value of an MCU pin by its name.

parameter	type	description
name	string	The name of the MCU pin to return the value of; e.g. "PD15".

startPwm(index, frequency, duty)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
frequency	float	The frequency to set the PWM output to. Values are clamped to be not less than 1 hertz and not more than 1000 hertz.
duty	float	The duty cycle (on time) to set the PWM output to. Values are clamped to be not less than 0.0 and not more than 1.0.

setPwmDuty(index, duty)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
duty	float	The duty cycle (on time) to set the PWM output to. Values are clamped to be not less than 0.0 and not more than 1.0.

setPwmFreq(index, frequency)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
frequency	float	The frequency to set the PWM output to. Values are clamped to be not less than 1 hertz and not more than 1000 hertz.

setLuaGauge(index, value)

Sets the given Lua gauge to the provided value. Currently two Lua gauges are supported: indices 1 and 2. This can also be accomplished by using the Lua Sensor interface, but setLuaGauge is more convenient to use.

parameter	type	description
index	integer	The index of the Lua gauge to set.
value	number	The value to set the Lua gauge to.

Sensors

hasSensor(name)

Checks whether a particular sensor is configured (whether it is currently valid or not).

parameter	type	description
name	string	The name of the sensor to check; see sensor_type.h.

getSensor(name)

Returns the value of a sensor by its name.

parameter	type	description
name	string	The name of the sensor to get the value of; see sensor_type.h.

getSensorRaw(name)

Returns the raw value of a sensor by its name. For most sensors this means the analog voltage on the relevant input pin.

note

Returns 0 if the sensor doesn't support raw readings, isn't configured/valid, or has failed.

parameter	type	description
name	string	The name of the sensor to get the value of; see sensor_type.h.

Sensor

Sensor is a Lua type that allows a script to act as the source of a firmware sensor. It is implemented as a "stored-value" sensor: the script sets a value, and that value is reported until either it is replaced by a newer write or the configured timeout expires (initially 100 milliseconds), at which point the sensor reports as invalid.

sensor = Sensor.new("OilPressure")

Sensor.new(name)

parameter	type	description
name	string	The name of the sensor to control; see sensor_type.h.

Sensor.set(value)

Sets the controlled sensor's value as provided.

parameter	type	description
value	float	The value to set the controlled sensor to.

Sensor.setRedundant(isRedundant)

Sets the redundancy-aspect of the controlled sensor.

parameter	type	description
isRedundant	boolean	Whether or not the controlled sensor is redundant.

Sensor.setTimeout(timeoutMs)

Sets the timeout for the controlled sensor's stored-value.

parameter	type	description
timeoutMs	integer	How long the controlled sensors value is valid for, in milliseconds.

Sensor.invalidate()

Invalidates the controlled sensor's stored-value.

no parameters

Firmware State and Control

These functions read and modify the running engine controller's state: live calibrations, computed sensor and actuator outputs, and adjustments to fuel, ignition, idle, boost, and ETB. Lua-controlled adjustments persist at their last-written value and are reapplied each engine cycle. They reset to neutral defaults (0 for additive offsets, 1.0 for multipliers, false for cut/disable flags) when the script is reloaded or the engine is reconfigured.

getOutput(name)

Returns the value of an output channel from FOME: allows inspection of internal firmware state. Valid output names are the live data channels listed in output_channels.txt and related generated headers (the same names visible in TunerStudio gauges and logs).

parameter	type	description
name	string	The name of a FOME output channel to return the value of.

getChannel(name)

Returns the (floating point) value of a "channel" from FOME, given its name. Valid channel names are (from lua_getchannel.cpp):

name	description
"FuelFlow"	Fuel consumption in grams per second.
"AFR"	Air-fuel (stoichiometric) ratio.
"InjectorDutyCycle"	Injector duty cycle for the current engine RPM.
"InjectorPulseWidth"	Injector pulse width (of the most previous injection) in milliseconds.

parameter	type	description
name	string	The name of a FOME channel to return the value of.

setClutchUpState(isUp)

Use setClutchUpState to tell FOME about a CAN-based clutch pedal.

parameter	type	description
isUp	boolean	Whether the clutch is up or not.

setBrakePedalState(isUp)

Use setBrakePedalState to tell FOME about a CAN-based brake pedal.

parameter	type	description
isUp	boolean	Whether the brake pedal is up or not.

setAcRequestState(isRequested)

Use setAcRequestState to tell FOME about a CAN-based A/C request.

parameter	type	description
isRequested	boolean	Whether the A/C is requested on or not.

restartEtb()

Re-initializes the electronic throttle subsystem. Useful when a Lua-controlled Sensor is acting in place of a physical pedal-position sensor: call restartEtb after the Lua sensor begins providing valid values so that ETB control picks it up.

no parameters

setEtbDisabled(isDisabled)

Disables electronic throttle control from Lua. While disabled, the ETB controller will not drive the throttle.

parameter	type	description
isDisabled	boolean	true to disable ETB control; false to allow normal operation.

setIgnDisabled(isDisabled)

Cuts ignition from Lua. Useful for cranking-safety interlocks (e.g. clutch switch, neutral switch), anti-theft overrides, or any condition where the script wants to inhibit firing. The cut is enforced by the limp manager.

parameter	type	description
isDisabled	boolean	true to cut ignition; false to allow normal operation.

setAcDisabled(isDisabled)

Suppresses A/C output regardless of which subsystem requested it. Acts as an unconditional override that disables the A/C clutch.

parameter	type	description
isDisabled	boolean	true to force A/C off; false to allow normal operation.

getTimeSinceAcToggleMs()

Returns the elapsed time, in milliseconds, since the A/C controller's state last changed (on→off or off→on). Useful for implementing post-toggle dwell, idle bump timing, or compressor-cycling logic.

no parameters

getCalibration(name)

Gets the current value of the named scalar calibration setting. For example getCalibration("cranking.rpm").

For the complete list of valid calibration names and their descriptions, see value_lookup_generated.md.

parameter	type	description
name	string	The name of the scalar calibration setting to read.

setCalibration(name, value, needEvent)

Writes a value to the named scalar calibration setting. If needEvent is true, the global configuration version is incremented so that subsystems which depend on the changed setting re-read it on their next cycle (e.g. trigger shape, fuel/ignition tables). Pass false for hot-path adjustments where re-initialization is unnecessary.

For example setCalibration("cranking.rpm", 900, false).

parameter	type	description
name	string	The name of the scalar calibration setting to write.
value	number	The new value to assign.
needEvent	boolean	true to increment the global configuration version after writing; false otherwise.

setTimingAdd(angle)

Adds the supplied angle to the computed ignition advance, in crank degrees. Use negative values to retard timing, positive to advance. Resets to 0 on script reload.

parameter	type	description
angle	float	The crank-angle offset to add to ignition advance, in degrees.

setTimingMult(coefficient)

Multiplies the computed ignition advance by the supplied coefficient before setTimingAdd is applied. Resets to 1.0 on script reload or engine reconfiguration.

parameter	type	description
coefficient	float	The factor to multiply ignition advance by.

setFuelAdd(amount)

Adds the supplied fuel mass, in grams, to each injection event. Applied after setFuelMult (i.e. final mass = base * mult + add). Initially 0.

parameter	type	description
amount	float	Fuel mass to add to each injection, in grams.

setFuelMult(coefficient)

Multiplies the computed injection fuel mass by the supplied coefficient. setFuelAdd is applied after this multiplier. Initially 1.0.

parameter	type	description
coefficient	float	The factor to multiply injection fuel mass by.

setEtbAdd(percent)

Adds a static offset, in percent of wide-open, to the ETB target. For example, with the driver requesting 5% TPS, calling setEtbAdd(10) opens the throttle to 15%. Useful for torque-based interventions like idle bumps, traction control, or anti-lag.

warning

Unlike other Lua adjustments, setEtbAdd has a 200 ms watchdog: if the script does not call setEtbAdd again within 200 ms, the adjustment is treated as 0. This is a safety measure — if the script hangs or stops running, the throttle reverts to the driver's requested position rather than holding the last intervention. Scripts using setEtbAdd must call it at a tick rate of 5 Hz or faster.

parameter	type	description
percent	float	Amount to add to the ETB target, as a percent of wide-open.

getGlobalConfigurationVersion()

Returns a counter that is incremented every time the engine configuration changes (e.g. via TunerStudio writes or setCalibration(..., true)). Lua scripts can compare the value across ticks to detect configuration changes and re-cache derived values.

no parameters

getFan()

Returns the current logical state (on/off) of the primary fan relay output.

no parameters

getAirmass(mode)

Returns the cylinder airmass (in grams) computed by the specified airmass model. If no argument is supplied, the currently-configured fuel algorithm is used. Valid model values match the engine_load_mode_e enum in rusefi_enums.h: 1 = real MAF, 2 = alpha-N (TPS), 3 = Lua.

parameter	type	description
mode	integer	Optional. The airmass model to evaluate; if omitted, the currently-configured fuel algorithm is used.

setAirmass(airmass, load)

Feeds a Lua-controlled cylinder airmass and engine load into the Lua airmass model. To take effect on running fueling, the engine's fuel algorithm must be set to the Lua airmass model in TunerStudio. Inputs are clamped to safe ranges (airmass 0–10 g, load 0–1000%).

parameter	type	description
airmass	float	Cylinder airmass, in grams. Clamped to 0–10.
load	float	Engine load, as a percent. Clamped to 0–1000.

resetOdometer()

Resets the trip odometer to zero.

no parameters

stopEngine()

Schedules an orderly engine stop: ignition and injection are cut and the firmware records the shutdown reason as Lua-initiated. Useful for safety interlocks (e.g. oil pressure loss, overtemp) where the script wants to bring the engine down rather than just cut a single output.

no parameters

setIdleAdd(amount)

Adds the supplied open-loop offset, in percent, to the idle valve / ETB idle target position. Used by scripts to bump the idle position for accessory loads or compensation. Resets to 0 on script reload.

parameter	type	description
amount	float	Offset to add to the idle position, in percent.

setIdleAddRpm(amount)

Adds the supplied offset, in RPM, to the target idle RPM. Used by scripts to bump the idle target for accessory loads (e.g. A/C, power steering). Resets to 0 on script reload.

parameter	type	description
amount	float	Offset to add to the target idle RPM, in RPM.

getIdlePosition()

Returns the current commanded idle valve/ETB position, as a percentage.

no parameters

CAN Bus

info

These functions are included in builds of FOME that incorporate CAN support.

All FOME boards support at least one CAN bus, which has index 1. Some recent boards support multiple CAN buses, with index 2 and higher.

The canRxAdd and canRxAddMask functions are available in various forms with differing number and types of parameters. They are conceptually the same, with canRxAddMask providing an extra argument to filter specific frames by a bit-mask. Currently, FOME allows for up to 48 different CAN frame reception filters, and will issue an error when attempting to add more filters than the limit (OBD_PCM_Processor_Fault: Too many Lua CAN RX filters).

When not using the forms of canRxAdd and canRxAddMask with a callback argument, FOME will invoke the global onCanRx function defined in the Lua script. Otherwise, the function referenced in the callback argument will be invoked.

The callback argument and onCanRx function is expected to be a Lua function with the following parameters:

parameter	type	description
bus	integer	The CAN bus index the frame was received on.
id	integer	The CAN ID of the received frame.
dlc	integer	The received CAN frame's data length.
data	integer table	The received CAN frame's data; an integer table from index 0 through (dlc - 1).

A script using the canRxAdd/canRxAddMask functions might look as follows:

function onCanRx(bus, id, dlc, data)
    -- Do things with received CAN frame data!
end

function handleSpecialCanRx(bus, id, dlc, data)
    -- Do things with received CAN frame data!
end

-- data handled in global onCanRx function
canRxAdd(1, 0x55)

-- data handled in special callback function
canRxAddMask(2, 0x40, 0x94, handleSpecialCanRx)

canRxAdd(bus, id, callback)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAdd(bus, id)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.

canRxAdd(id, callback)

Adds a CAN frame reception filter, filtering by CAN ID, on all available CAN buses, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAdd(id)

Adds a CAN frame reception filter, filtering by CAN ID on all CAN buses.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.

canRxAddMask(bus, id, mask, callback)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
bus	integer	The CAN bus to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAddMask(bus, id, mask)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.

canRxAddMask(id, mask, callback)

Adds a CAN frame reception filter, filtering by CAN ID, on all available CAN buses, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAddMask(id, mask)

Adds a CAN frame reception filter, filtering by CAN ID on all CAN buses.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.

enableCanTx(isEnabled)

info

enableCanTx is available in all builds of FOME, regardless of incorporated CAN support.

Used to enable or disable CAN transmission. CAN transmission is enabled by default at startup.

parameter	type	description
isEnabled	boolean	Whether or not CAN transmission is enabled.

txCan(bus, id, isExtended, data)

Transmits a CAN frame on the specified CAN bus, with the supplied CAN ID and data.

parameter	type	description
bus	integer	The CAN bus index to transmit the frame on.
id	integer	The CAN ID to transmit with the frame.
isExtended	integer	Whether to transmit a standard (11-bit ID) or extended (29-bit ID) CAN frame.
data	integer table	The data to transmit with the CAN frame.

Launch Control

setSparkSkipRatio(ratio)

info

setSparkSkipRatio is only included in builds of FOME with launch control support enabled.

Sets the target ratio of ignition events to be skipped (suppressed) by the soft spark limiter. A value of 0 fires every spark; 1.0 skips every spark.

parameter	type	description
ratio	float	The target spark-skip ratio, in the range 0.0 to 1.0.

Crankshaft Position Input

selfStimulateRPM(rpm)

Drives the trigger emulator to self-stimulate the engine at the requested RPM. Pass an RPM value less than 1 to disable self-stimulation.

parameter	type	description
rpm	integer	RPM to emulate; values less than 1 disable the trigger stimulator.

getEngineState()

Returns a numeric code representing the current engine running state.

value	state
0	Stopped
1	Spinning up or cranking
2	Running

no parameters

getTimeSinceTriggerEventMs()

Returns the elapsed time, in milliseconds, since the last received trigger event.

no parameters

Boost Control

setBoostTargetAdd(value)

Sets a Lua-controlled additive offset applied to the computed boost target.

parameter	type	description
value	float	The amount to add to the boost target.

setBoostTargetMult(value)

Sets a Lua-controlled multiplier applied to the computed boost target.

parameter	type	description
value	float	The factor to multiply the boost target by.

setBoostDutyAdd(value)

Sets a Lua-controlled additive offset applied to the boost control open-loop duty cycle.

parameter	type	description
value	float	The amount to add to the boost open-loop duty cycle.

Vehicle Speed

info

These functions are only included in builds of FOME with the gear-detection module enabled.

getCurrentGear()

Returns the currently detected gear.

no parameters

getRpmInGear(index)

Returns the engine RPM that corresponds to current vehicle speed in the specified gear.

parameter	type	description
index	integer	The gear index to return the RPM for.
